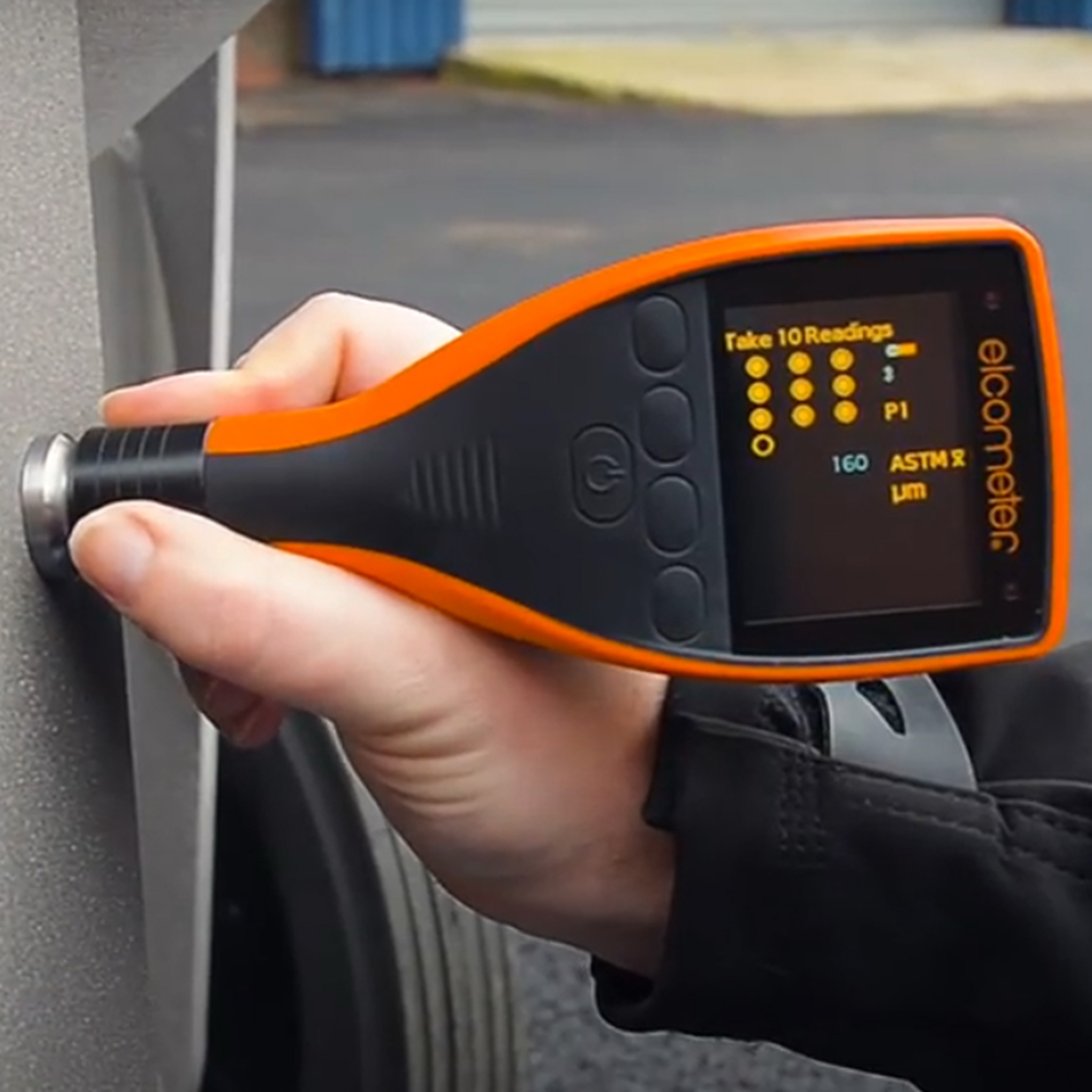

The Elcometer 224 provides the very latest in surface profile measuring technology for measuring profile on either flat or curved surfaces.
- Fast and reliable peak-to-valley surface profile measurement
- Accurately measure surface profile on flat or curved surfaces up to 500μm (20mils)
- Measures both average peak-to-valley and average maximum peak-to-valley height
- Portable, rugged hand-held design is ideal for field use
User Friendly
- Large buttons ideal for gloved hands
- Easy to use menus in multiple languages
- High contrast colour LCD with auto rotate
- High and low reading limit indicators
- Factory calibrated for immediate use
Accurate
- Can be used in accordance with National and International Standards
- Temperature stable measurements
- Statistics are calculated and displayed in real time
- Live and batch readings graph format for instant analysis
- Measurement capability to ±5%
Reliable
- Repeatable and reproducible measurements
- 2 year gauge warranty
- Supplied with fully traceable Test Certificates
- Batch & individual readings are date and time stamped
Tough
- Sealed, heavy duty and impact resistant
- Dust and waterproof equivalent to IP64
- Suitable for use in harsh environments
- Scratch and solvent resistant display
- Durable gauge and probe construction
Efficient
- Fast reading rate of 50+ per minute

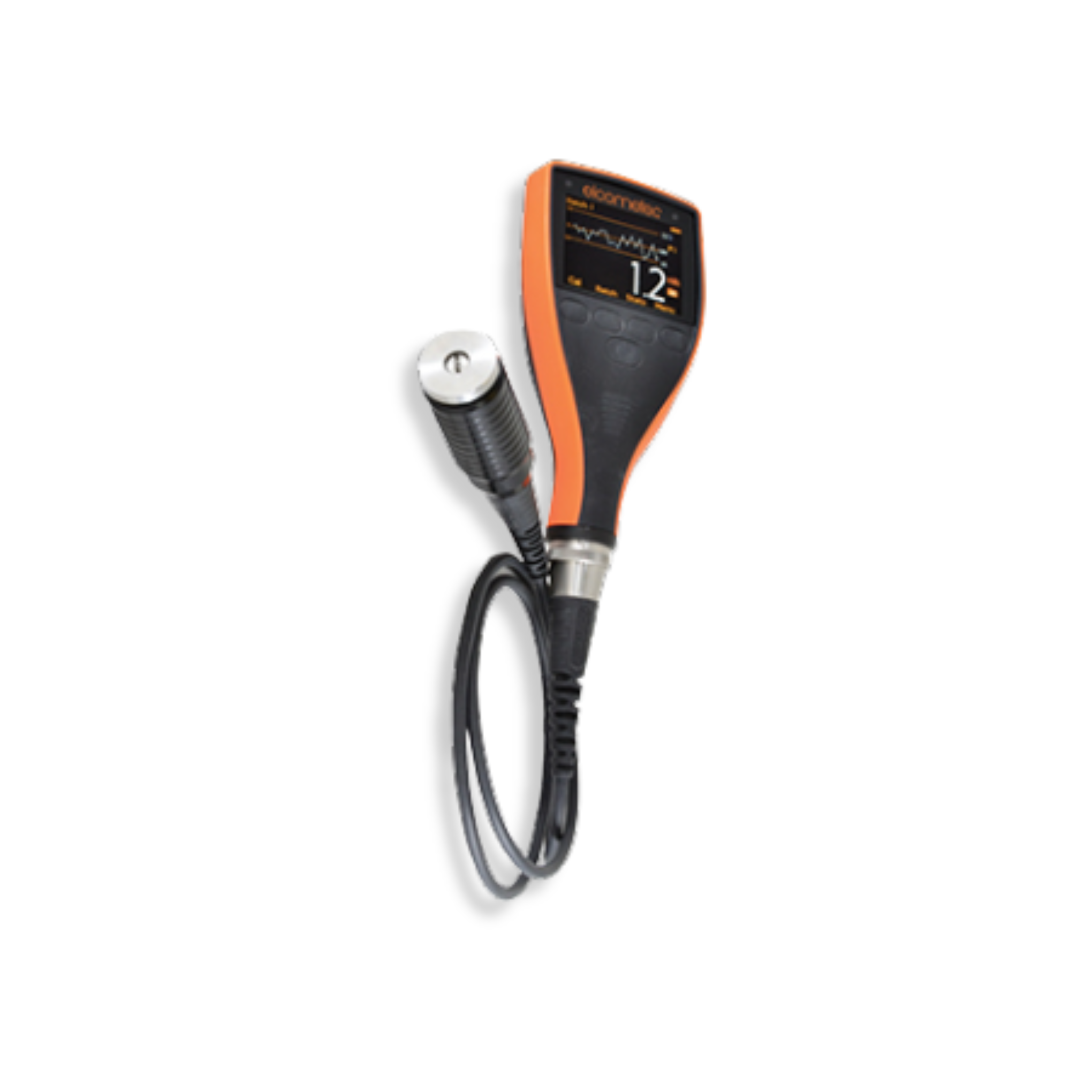

- Integral and separate probe versions to suit your application
- Alpha numeric batch identification
- Compatible with ElcoMaster® and ElcoMaster® Mobile App
- Powersave mode with tap awake
- Select 5 or 10 readings per measurement
Powerful
- User replaceable tough tungsten carbide tip - can be used for up to 20,000 readings
- USB and Bluetooth® data output to iPhone* or Android™ devices
- Stores up to 150,000 readings in 2,500 batches
- Measures profiles up to 500μm (20mils)
- Review batch data or last 20 readings in a graph format
- Integral & separate probe options for flat and convex1 curved surface
The Elcometer 224 surface profile meter is available in two different models: Model B and Model T. Each surface profile gauge provides the user with increasing functionality - from the entry level Elcometer 224 Model B, to the top of the range Elcometer 224 Model T, with memory, alpha-numeric batching and Bluetooth® communication.
Standard and armoured probes are available for the separate models, providing even greater measurement flexibility. Elcometer surface profile probes are supplied with a glass zero plate, calibration test foils (nominal values 125µm (5.0mils) & 500µm (20mils)) and an Elcometer Test Certificate.
Probes are sold separately, they are not included with the separate gauge.
